INTRODUCTION

Everything you need to explore ZimaBoard possibilities!

As a product tailored for home services and smart home scenarios, openness and scalability have always been our focus when designing ZimaBoard. We have carefully analyzed market choices, and found three categories in total:

SPEC/PRODUCT

ZimaBoard

Synology DS218+

Raspberry Pi and Alternatives

HARDWARE

INTERFACE

PCIe x4
Dual SATA 3.0

SO-DIMM RAM Slot

GPIO
CSI Camera
DSI Display Port

In contrast, the ZimaBoard team is stoic at this point. ZimaBoard advocates a scene-centric design concept, combined with user-friendly, easy-to-use expandability. After repeated discussions and modifications, we chose the PCIe x4 interface to satisfy all expansion requirements, combined with dual SATA 3.0, which makes an ideal light personal server.

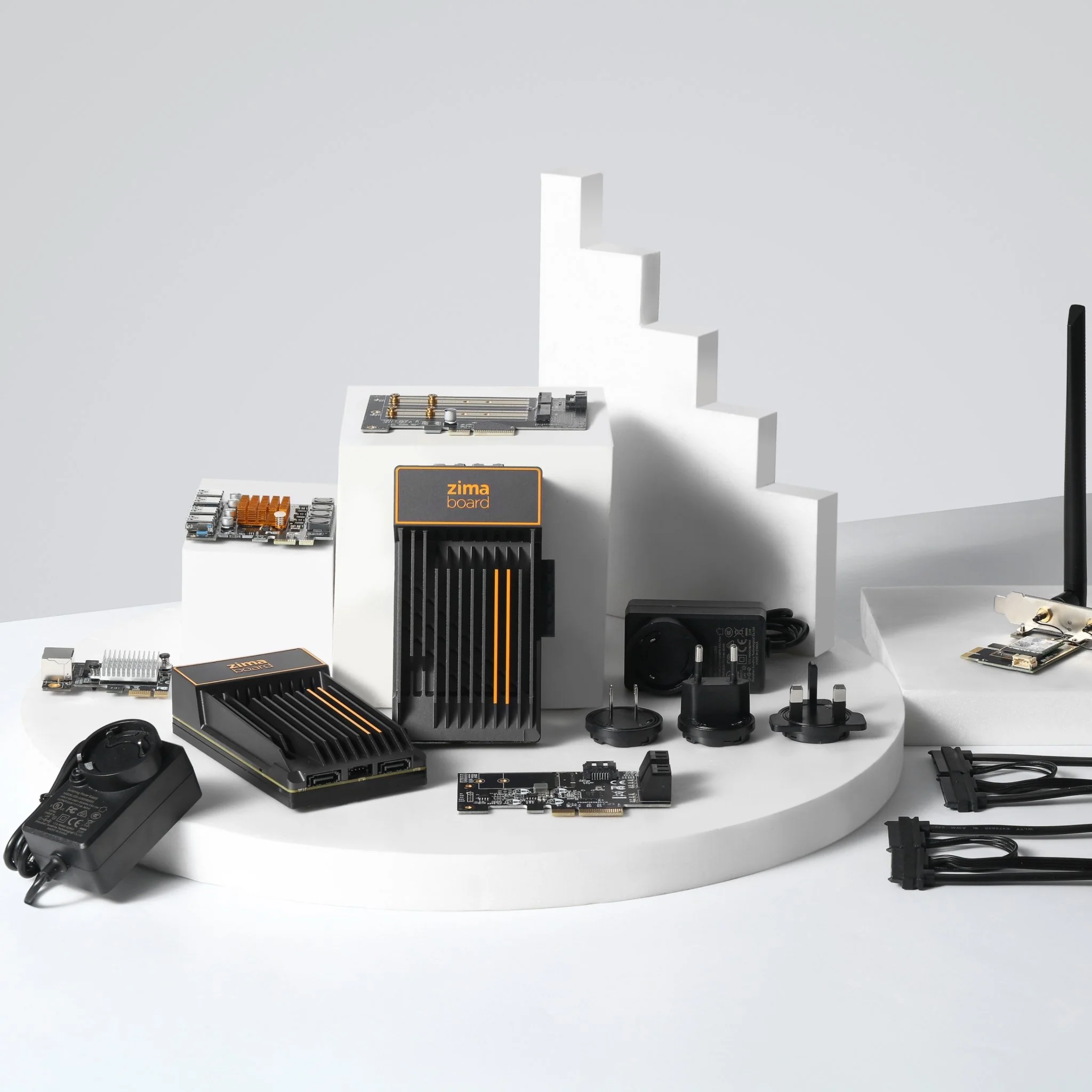

ZimaBoard 832 Development Kit allows you to explore a complete range of entry-level home server functions fully. Two ZimaBoard 832s can separately serve as an OpenWRT/pfSense software router and a LAN microserver running Linux Server at the same time.

The kit integrates mainstream PCIe expansion peripherals, covering user scenarios like multiple SATA, Ethernet, 4-channel USB 3.0, or open DIY WIFI gateway via WIFI 6. The Y-type HDD expansion cable comes in this kit supports two 2.5" HDD/SSD directly mounted on ZimaBoard.

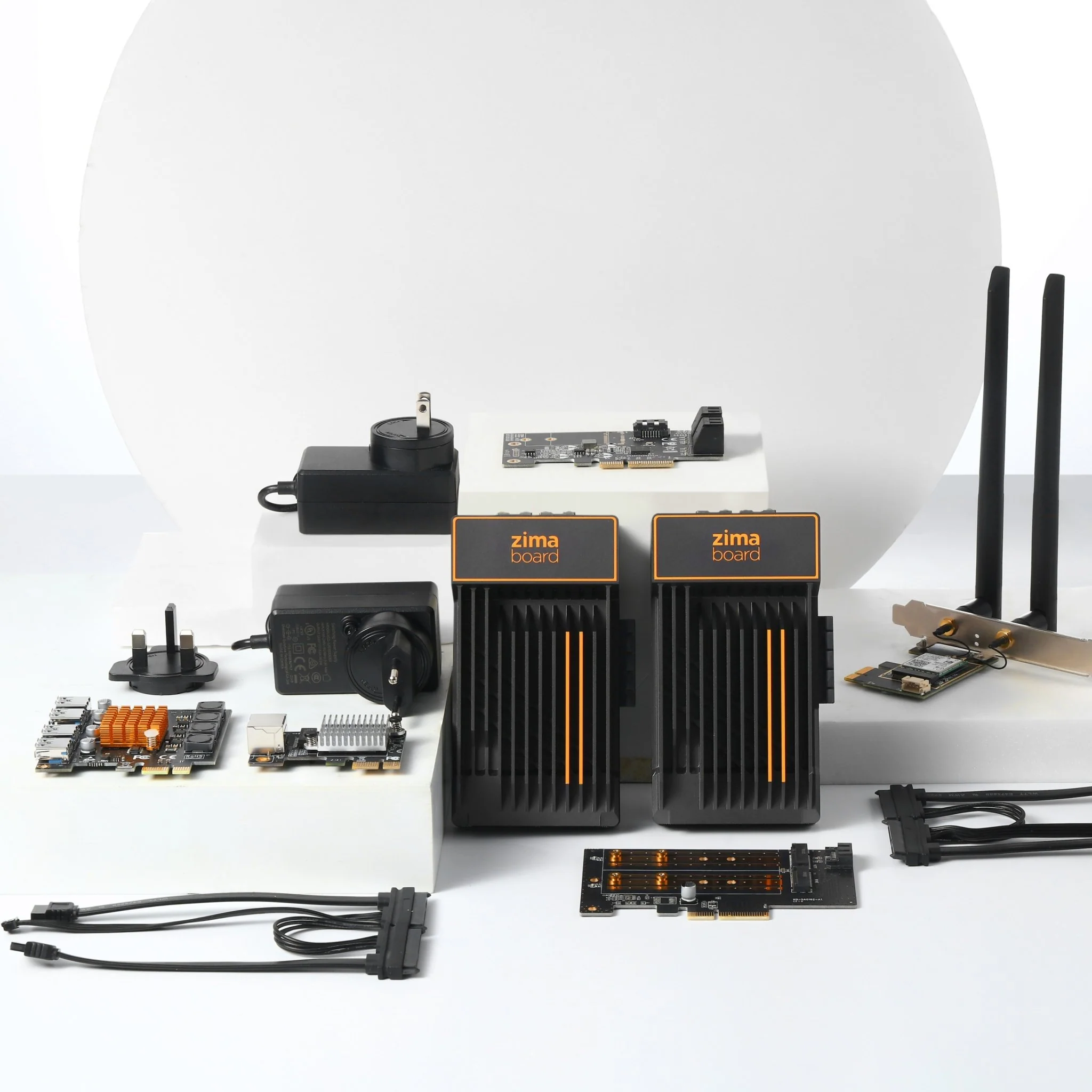

SHIPPING LIST

2x ZimaBoard 832
2x 12V/3A Power Adapter
1x PCIe to 2.5G Ethernet Adapter Realtek RTL8125 Chipset
1x PCIe to 4 Channel USB Adapter
1x PCIe to 5 Port SATA III Adapter JMB585 Chipset
1x PCIe to NVMe SSD Adapter
1x Intel AX210 WiFi 6E PCIe Card with 8Dbi Antennas Set
2x SATA Y-Cable for ZimaBoard

Master Kits for Home Server & Personal Cloud

Price

Collections

ZimaBoard 832 Development Kit

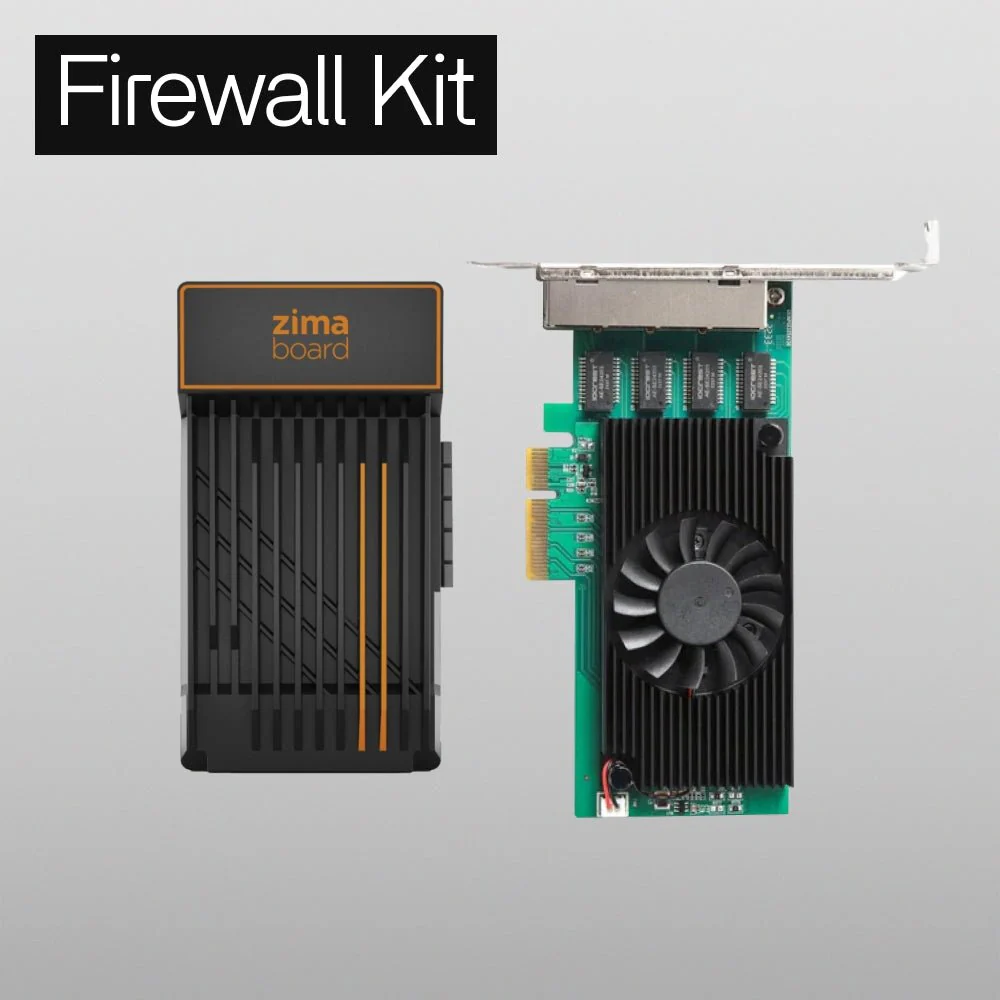

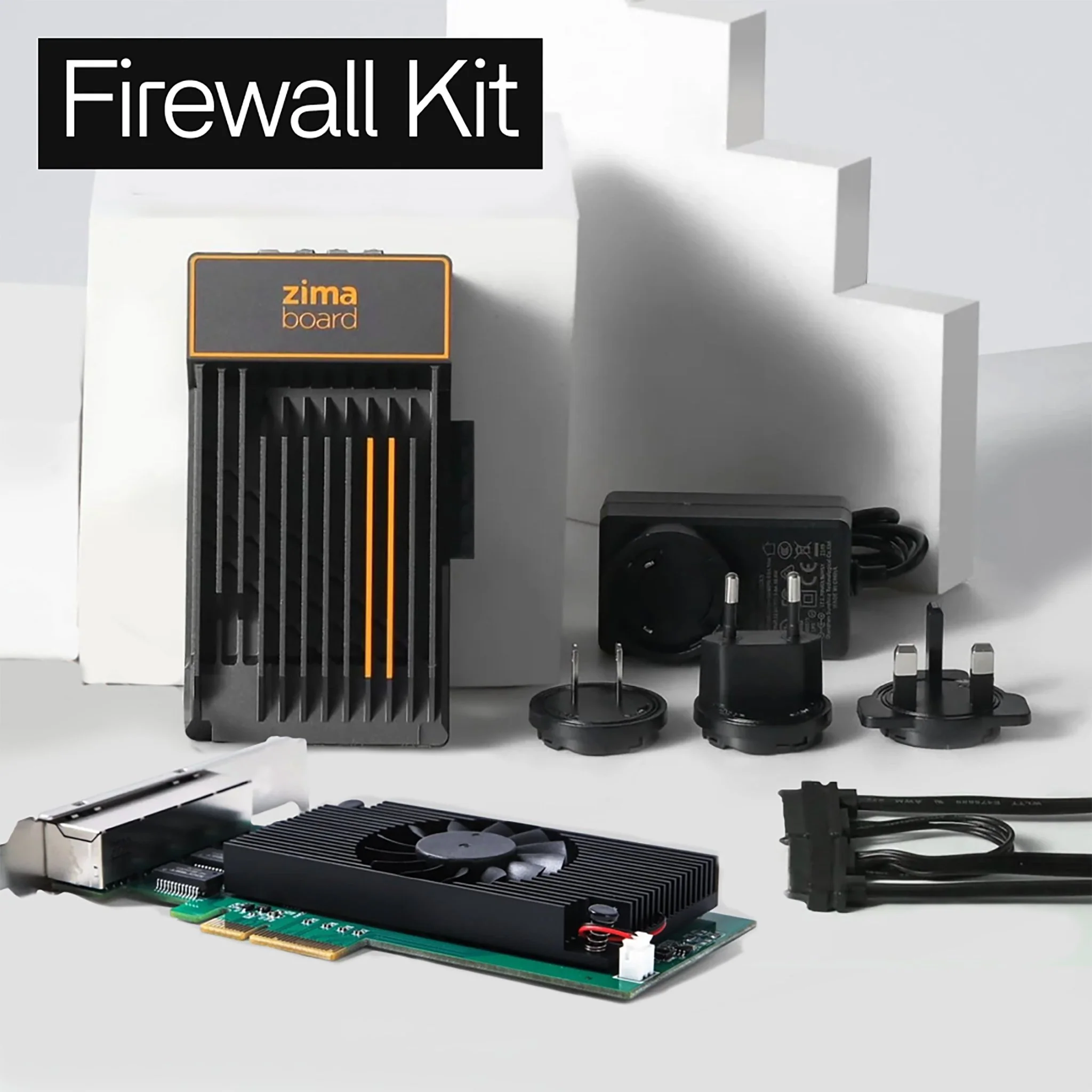

ZimaBoard 232 Firewall Kit – 4x 2.5GbE Intel NIC, x86 Custom Setup (RTS)
